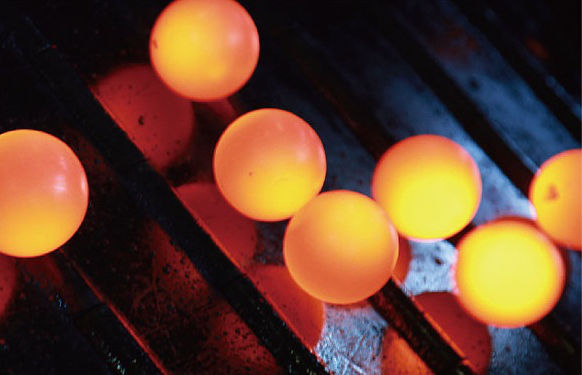

HMR hot rolling grinding ball

  • 【Product Standard】Φ20-120mm
  • 【Product Density】7.80g/cm³
  • 【Range Of Application】Black and non-ferrous metal mining, chemical industry, new building materials, refractories, chemical fertilizer, silicate products, glass ceramics and other industries.
  • 【Product Presentation】Hot rolled steel ball has the characteristics of high and uniform hardness, low crushing rate, high grinding efficiency, low cost, mature technology and ideal use effect.
  • 【Product Feature】Low crushing rate: the actual crushing rate does not exceed 0.5% High impact toughness: impact absorption energy kn2 > 7J Uniform hardness distribution: the hardness deviation of any two points of the same ball is less than 3HRC

【Chemical Composition】

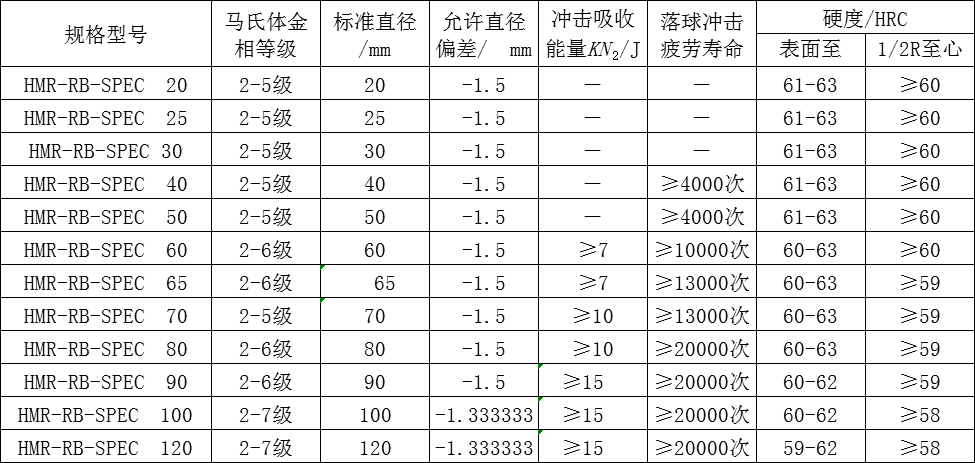

【Technical Specification】


Once again, the ring mill won the award of "the first prize of green mine science and technology progress in 2020". Note: the effective height difference of the ball falling machine is 8.5m


HMR hot rolling grinding ball use effect statistics results: HMR hot rolling grinding ball use effect statistics results: HMR hot rolling grinding ball use effect statistics results: HMR hot rolling grinding ball use effect statistics results: HMR hot rolling grinding ball use effect statistics results: HMR hot rolling grinding ball use


The average ball consumption of HMR hot rolling ball is 620 g / T, and that of other manufacturers is 850 g / T. the unit ball consumption is reduced by 27.1%.


HMR hot rolling grinding ball has very low crushing rate, high grinding efficiency and low cost.

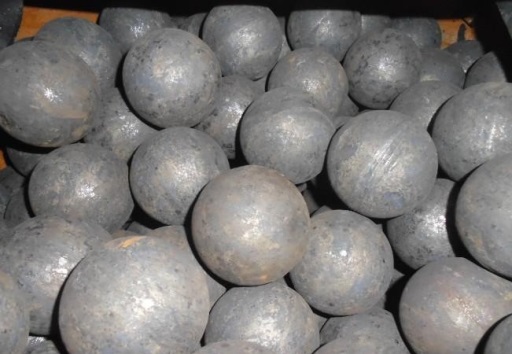

Φ 120mm HMR hot rolling grinding ball

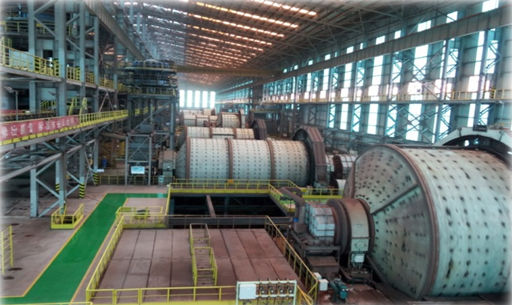

Φ 10370mm × 5490mm SAG mill
