HMR - Ⅰ metal magnetic liner

  • 【Product Standard】
  • 【Product Density】
  • 【Range Of Application】It is mainly used for small grinding machine rich in magnetic minerals.
  • 【Product Presentation】The traditional ball mill lining mainly depends on changing the lining material to improve the impact resistance and wear resistance of the lining, so as to prolong the service life. The magnetic liner completely changes the anti-wear idea of the traditio
  • 【Product Feature】Safety, economy and environmental protection Long service life, 4 ∼ 6 times of ordinary manganese steel lining plate Light weight and thin thickness ? power saving > 10% Improve operation rate Convenient installation, reduce the labor intensi

【Chemical Composition】

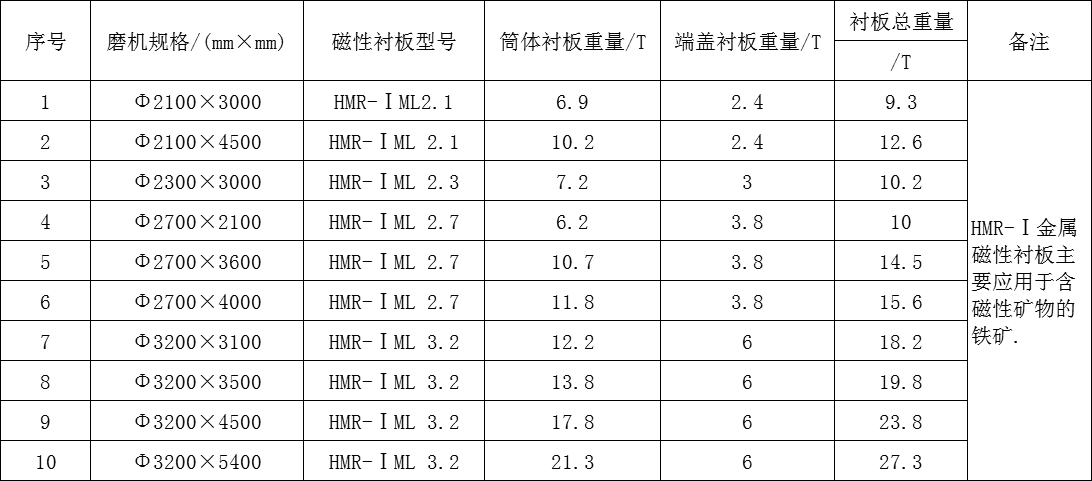

【Technical Specification】

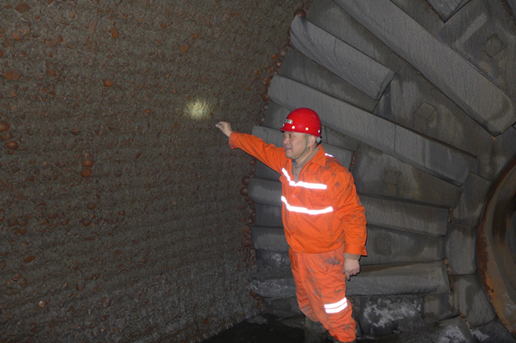

Periodic detection of magnetic lining in Dongguashan Iron Mine


Case analysis of hmr-i metal magnetic liner

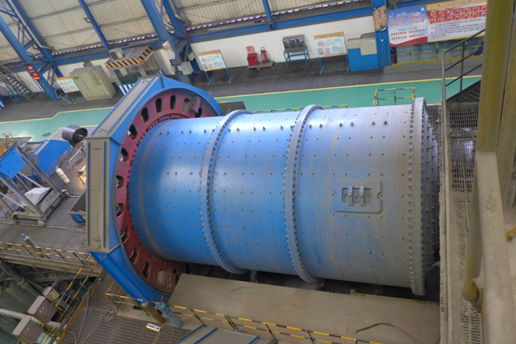

Φ3200mm×3600mm   Ball mill


Application effect of hmr-i metal magnetic lining board:

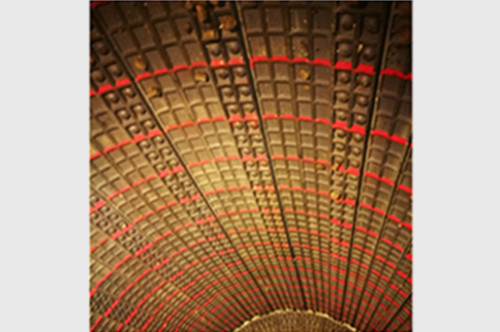

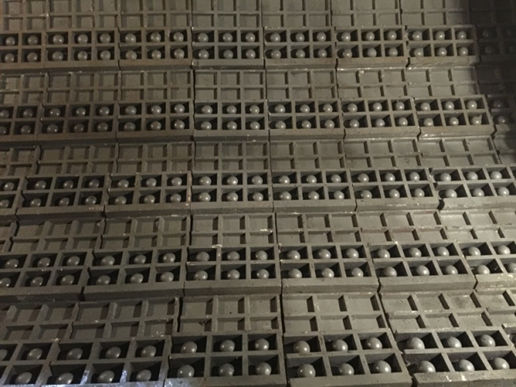

Installation drawing of hmr-i magnetic liner

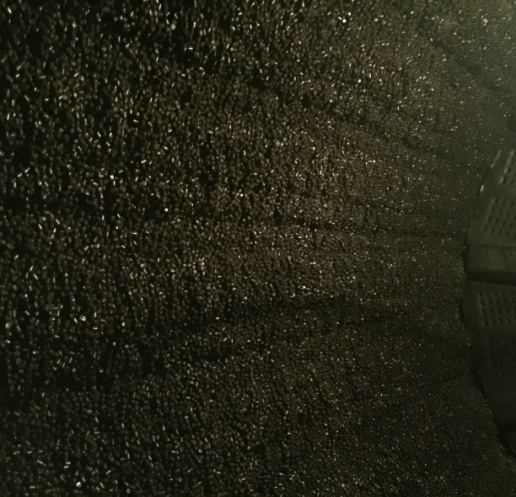

Adsorption protective layer of hmr-i magnetic liner

The service life of hmr-i metal magnetic liner is 24 months, and that of high manganese steel liner is 7 months. The service life of the liner is increased by 3 times.

The weight of hmr-i metal magnetic liner is lighter than that of high manganese steel liner, saving more than 10% of electric energy.
